Description

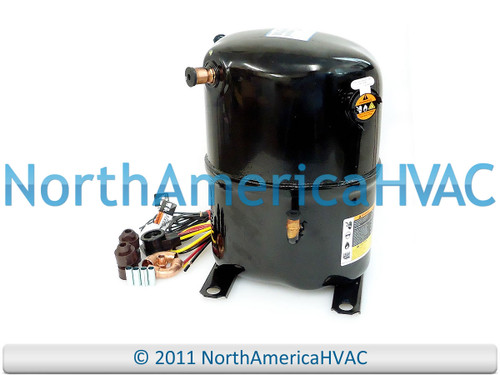

This is a 2 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is CR20K6-PFV-875. It is rated at 20,000 BTU. It is designed to replace the obsolete part numbers listed in the title. In some instances, small piping changes may be required. Thanks for looking and good luck!
Tonnage: 1.5-2
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase Heater.
The Required Run Capacitor is 30 uf 370 volt. Most condensing unit capacitors are dual capacitors, meaning they operate the compressor and the fan. To purchase the correct capacitor you will need to know the uf rating on the fan.
Start Capacitor rating, if needed, is 145-174 250 Volt
TECHNICAL SPECIFICATIONS.
Tonnage: 1.5-2
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase Heater.
The Required Run Capacitor is 30 uf 370 volt. Most condensing unit capacitors are dual capacitors, meaning they operate the compressor and the fan. To purchase the correct capacitor you will need to know the uf rating on the fan.
Start Capacitor rating, if needed, is 145-174 250 Volt
To install a Compressor PROPERLY you need to have AND use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. All Sales are Final! There are NO WARRANTIES! Compressors Should be installed by a qualified Heating Air Conditioning Tech.
Function:
Compressors compress refrigerants (freon) from a gas state into a liquid state and then pump it through the freon lines.
Replaces Old Part #s:
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
