Description
OEM ICP Heil Tempstar Sears 1/4 HP Condenser FAN MOTOR 208-230 Volt Replaces 1173836

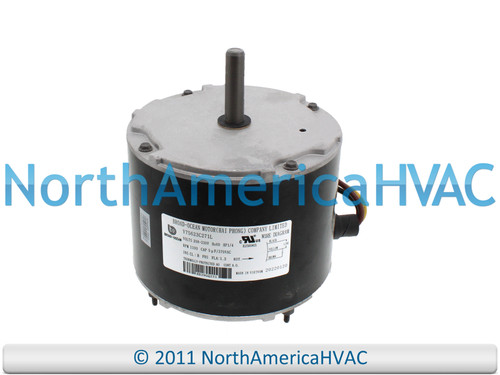

This is a BRAND NEW ICP/Heil/Tempstar/Comfort Maker/Sears/Arcoaire/Snyder General Condenser FAN MOTOR. The part # is 1173836. The Genteq Part # is 5KCP39EGZ273S. It's 1/4 HP 208-230v 1100 RPM. The motor is 5 5/8" in diameter (Frame 48Y). The shaft extends 1.5" out of the motor. The motor has a 3 wires. Thanks for looking and good luck!
Function:
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Replaces Old Part #s:
1173836
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
-
