Carrier Bryant 1.5 Ton 208-230 Volt A/C Compressor GB20JF007 P032-1823 P032-1824

  • GB20JF007 P032-1823 P032-1824

This item is in stock.

CMP83 004-E9

Product Description

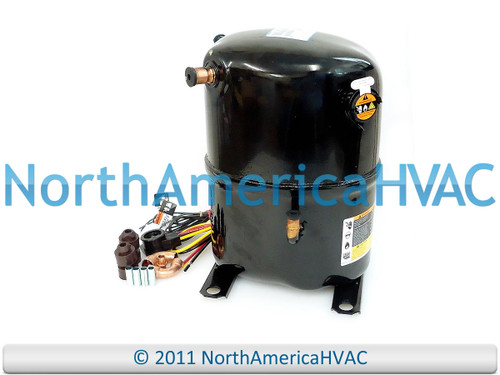

Carrier Bryant 1.5 Ton 208-230 Volt A/C Compressor GB20JF007 P032-1823 P032-1824

This is a BRAND NEW 1.5 Ton, 208-230 Volt, 1-Phase, Direct Factory Replacement Bristol Compressor. The Bristol Model is H22J18BABCA. It is rated at 18,265 BTU. In some instances, small piping changes may be needed. Thanks for looking and good luck!

Capacity (BTU/HR):18265
Input Voltage (V):208
Input Voltage (V):230
No. of Phases:1
Freq. (Hz.):60
Run Capacitor (uF/V):30/370
Start Capacitor (uF/V):161-193/250
Rated Load Current (A):7.4
Max. Continuous Current (A):14.0
Locked Rotor Current (A):48.0
Crankcase Heater Included?:Yes
Soundwrap (Brinmar):68-25217-10
Suction Line Location:2
Suction Line Height (in.):11-1/4
Suction Line Configuration:Stub Out
Suction Line Size (in.):3/4
Discharge Line Location:4
Discharge Line Height (in.):2-7/8
Discharge Line Configuration:Up
Discharge Line Size (in.):1/2
Overall Compressor Height (in.):13-1/2
Mounting Base Dimensions (in. x in.):

To install a Compressor PROPERLY you need to have AND use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. All Sales are Final! There are NO WARRANTIES! Compressors Should be installed by a qualified Heating and Air Conditioning Tech


Compressors compress refrigerants (freon) from a gas state into a liquid state and then pump it through the freon lines.

Replaces Old Part #s:

GB20JF007 P032-1823 P032-1824

Repair Difficulty Level: difficulty graph


Partial List of Units that Use This Item:

Hit Ctrl+F and enter your model number for a quick search!

SKU: CMP83 004-E9
