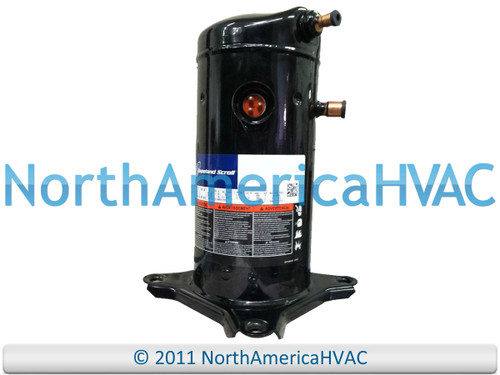

Copeland 1.5 Ton Scroll Compressor ZR18K4-PFV-830 ZR18K4-PFV-130 ZR18K4-PFV-930

This is a 1.5 Ton 208/220 Volts 1-PhaseDirect Factory Replacement Copeland Scroll Compressor. The Copeland Model # is ZR18K5E-PFV-800, which replaces old Carrier/Bryant/Payne/Copeland Model #s P021-18211P & P021-18211. In some instances, small piping changes may be needed. It is rated at 18,000 BTU.Thanks for looking and good luck!

TECHNICAL SPECIFICATIONS.

Capacity (BTU/HR): 18000
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Freq. (Hz.): 50
Freq. (Hz.): 60
Run Capacitor (uF/V): 30/370
Start Kit: SK-A1
Kick Start: 42-TO5
Start Capacitor (uF/V): 88-106/330
Start Capacitor Part Number: 43-17075-04
Rated Load Current (A): 10.7
Max. Continuous Current (A): 15.0
Locked Rotor Current (A): 55.0
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Soundwrap (OEM): 68-23427-26
Refrigerant Oil: Mineral (85-H2301)
Suction Line Location: 2
Suction Line Height (in.): 10-1/8
Suction Line Configuration: Stub Out
Suction Line Size (in.): 3/4
Discharge Line Location: 3
Discharge Line Height (in.): 14-3/16
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 15-5/16
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2

To install a Compressor PROPERLY you need to have AND use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. All Sales are Final! There are NO WARRANTIES! Compressors Should be installed by a qualified Heating Air Conditioning Tech.

SKU: CMP63 631-E1
